Water Weed Cutting/Vessel/Machine/Dredger/Boat

Water Weed Cutting/Vessel/Machine/Dredger/Boat

  • Min.Order Quantity: 1 Set
  • Supply Ability: 20 Sets per Year
  • Port: Qingdao
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2011-03-18
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  15.5*1.7m
  • Place of Origin:  Shandong,China
  • Brand Name:  KD
  • Model Number:  KD-WCD
  • Weight: 10000.000 kg

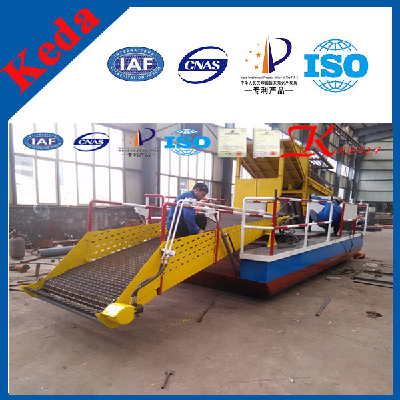

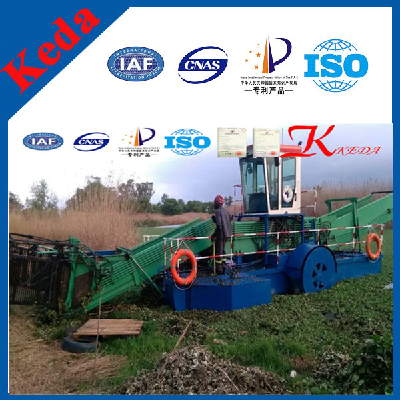

Water Weed Cutting/Vessel/Machine/Dredger/Boat

1.Product Description

1.The equipment can used in collect,transport,discharge water hyacinth,reed,algae and garbage in the water.

2.the operation system use full automatic centralized control, this can make the equipmend sail and go forward and back.

3.the equipment can be adjust the direction and do the unloading work by one person.this kind of dredger is famous for it simple structure,flucxible movement and easy operation.

4.the machine is made is welding steel,the material is CCSB(China Classification Society Standard) ship steel plates,the equipment pained 4 layersof anti-rust marine paint.

5.the opearion system uses remote centralized control, this can make the equipment sail,go forward and back,adjust direction and do the loading work.

2.Basic parameters

Transportation size (L×W×H)m 8×3.3×3.3
Cutting size(L×W×H) 9×4.6×3.3m
Weight 40t
Driven motor hydraulic
Oar size(L*W*H)m 1.2*0.65*1.2m
Cutting area 4000m2/h
Output power 16kw
Fuel tank capacity 180L
Electric system 12v
Draft(non load) 0.45m
Cutting depth 1m
Working Navigational Speed 3km/h
Passenger 3
Endurance ability h 30h
Fuel consumption 2.8L/h

3.Weed Cutting Dredger

Weed cutting dredger is composed of a cutting platform, a holding tank, a paddle propeller, a waste sending unit and power system. The system is fully hydraulic controlled.This machine has the following fuctions: cutting, collecting waste, temporary storage, automatic dumping dirt and etc.

1).The circuit is manually controlled through a multi-way valve.

2).The right and left paddle-propeller are separately controlled by each steering valve and oil motor,which enable both paddles move forward or backward at the same time,or individual forward,or individual inverse,to make the body of the ship move foreward and make a turn.the main engine is a single host,which is above the deck.

4.Our Services

1.Rational and practical design according to customers' request proved.
2.Within warranty period,we provide free repair if quality problems emerge.
3.Engerneers are avaliable to service oversea to assemble and test the machine according to the contract.
4.Free training of the first batch of operater proved, any question or problem about the products can be answered via online support, phone calls or on-sit support 24 hours.

5.Customer Visiting


There are so many customers from all over the world has visited our company and left with their ideal products. You are strongly invited to be here too, so you can learn more about our company and the product you need by your own sight.


6.FAQ


1 .Where has your plant export to ?

Africa: Sudan,Ghana,Mali,etc.....

East South Asia :Burma,Philippines,Indonesia,etc...

LatinAmerica:Surinam,Chile

Others:Papua New Guinea

2.What's your main products ?

We focus alluvial gold mining equipment and cutter suction /chain bucket/j    et suction dredger .Kindly contact us for catalog,please

3.What's your warranty ?

We have ISO cetification and provide 1year warranty for all of our products.Allspare parts will be provided fast and cheap for ever.

4.Do you also design plant ?

Yes.Although we have some popular models.but the real good palnt is designed for clients,based on the condition of gold mine site

Click here for more design details

5.How can I contact you ?


7.Contact Information

Qingzhou Keda Mining Machine Co,.Ltd.

Tina Xu

E-mail:sales04(at)miningmachine.net

Skype:kedamachinery04

Tel/Fax:0086-536-2105419

Tel:0086 18363675506
