- Size: 2500*1500*1000mm
- Place of Origin: Shandong,China
- Brand Name: KD
- Model Number: KD-2
- Weight: 200.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

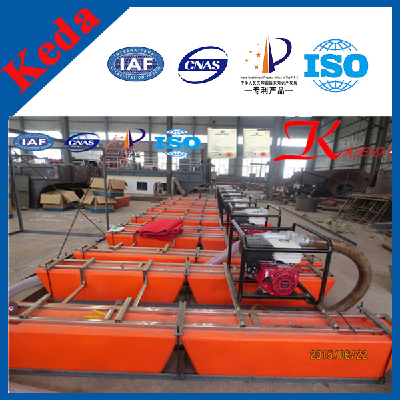

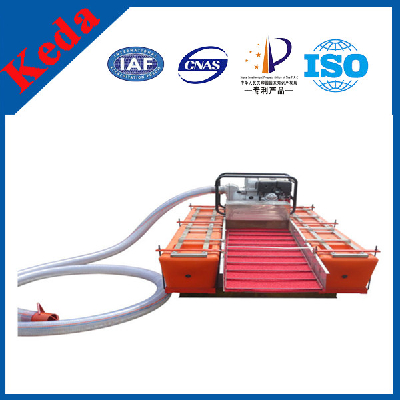

Mini gold dredge machine gold mining dredger
1.Small Gold Suction Dredging Equipment For Gold Panning,Feature
Mini Gold Dredger | |||
Model | QFT3-2 | QFT4-3 | QFT5-3 |
Dimension | 2300*1500*1000mm | 2500*1500*1000mm | 2500*1500*1000mm |
Diesel | |||
Model | RZ170F | RZ178F | RZ186FA |
Power | 5hp | 7hp | 12hp |
Rotate speed | 3600rpm | 3600rpm | 3600rpm |
Fuel consumption | ≤284g/Kw·h | ≤283g/Kw·h | ≤280g/Kw·h |
Fuel capacity | 2.65L | 3.3L | 5.5L |
Pump | 1 set | 1 set | 2 sets |
Dimension(L*W*H) | 550*450*450mm | 550*470*450mm | 550*500*480mm |
Pump diameter | 50mm ( 2inch ) | 80mm ( 3inch ) | 100mm ( 4inch ) |
Water flow | 33m³/h | 60m³/h | 80m³/h |
Head | 30m | 30m | 25m |
Dredging depth | 0.5-0.8 m | 0.5-0.8 m | 1.5 m |
Work capacity | 5m³/h | 8m³/h | 13m³/h |
Gold chute | |||
Dimension ( L*W ) | 400*1500mm | 500*1700mm | 500*1700mm |
With gold felt | With gold felt | With gold felt | |
Float | |||
Dimension ( L*W*H ) | 1600*395*370 | 1600*395*370 | 1600*395*370 |
Suction pipe | 3inch | 4inch | 5inch |
2.Small Gold Suction Dredging Equipment For Gold Panning,Detail Introduce
The samll gold suction dredging equipment is the new portable gold mining equipment according to customer’s require.The unmatched performance of this new dredge system is designed for those who operate in extremely remote and challenging locations. It is popular for new and old customers.
3.Small Gold Suction Dredging Equipment For Gold Panning,Our Services.
Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
1.Enough details about the ores or slags shall be learned, sometimes a test is needed for some ores.
2.Equipment of right model is selected for customers.
3.Customized products and processing flow sheet can be designed and developed to meet customer's special needs.
4.Engineer could be sent to observe customer's working site to come up with an optimized solution accordingly.
On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
1.Inspection is a must before delivering of the goods.
2.Assistance to make a construction plan by supplying all drawings and data needed.
3.Most favorable scheme for you with the guaranteed quality.
4.Timely communication to make sure improvement of project and your requirement met.
After-sales service:
We are devoted to helping you to benefit as much as possible.
1.Installation, adjustment, and testing of equipment is available.
2.Train of technicians and workers at site is promised.
3.Service engineers will not leave until ensuring the whole line running well after the installation & adjustment is finished.
4.If any failure or question about the machines or the processing line, contact us and we are available at any time.
4.Why choose us :
1. We are factory (NOT Dealer)
All machinery from Well-tech international equipment Mining Machinery Manufactory are made by ourselves, No trade company make
Commission(many trade companies do not produce the machinery),the lower price with the same goods, good quality, after service can be assured (after service of trade companies will get help from factory).
So please buy from factory
2 . We will do our best to satisfy every customer's needs
Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost.
3. Training and service
Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
4. If you are new for this business, I will help you.
Many thanks for your trust; we can provide you with the pre-services of design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments, drilling rig, Loader, trucks, excavators and so on
5. We will recommend a suitable type for you and send you a best quotation.
5.Our Services
1.Rational and practical design according to customers' request proved.
2.Within warranty period,we provide free repair if quality problems emerge.
3.Engerneers are avaliable to service oversea to assemble and test the machine according to the contract.
4.Free training of the first batch of operater proved, any question or problem about the products can be answered via online support, phone calls or on-sit support 24 hours.
6.Company Information
Qingzhou Keda ore machinery Co.,LTD. is a modern and formal ore machine manufacturer,which is professional at producing all kinds of mining equipment with ISO9001:2008. The gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufacturer has this patent in China.
The company is established in 2002 primitively, covers an area of more about 20,000 square meters and equipped with modern type workshops and office . Nice product comes from excellent teamwork. Currently there are 120 stafves, including 2 senior engineers, 5 engineers, 15 technicians and 60 technical workers. Our company are more normative in management, our engineers are more professional in design and manufacture, our service are more comprehensive and thoughtful, and our price are more competitive with the best quality.
6.Certifications
All the products in our company has passed ISO9001:2008,and the gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufacturer has this patent in China.
6.Customer Visiting
There are so many customers from all over the world has visited our company and left with their ideal products. You are strongly invited to be here too, so you can learn more about our company and the product you need by your own sight.
7.FAQ
1 .Where has your plant export to ?
Africa: Sudan,Ghana,Mali,etc.....
East South Asia :Burma,Philippines,Indonesia,etc...
LatinAmerica:Surinam,Chile
Others:Papua New Guinea
2.What's your main products ?
We focus alluvial gold mining equipment and cutter suction /chain bucket/j et suction dredger .Kindly contact us for catalog,please
3.What's your warranty ?
We have ISO cetification and provide 1year warranty for all of our products.Allspare parts will be provided fast and cheap for ever.
4.Do you also design plant ?
Yes.Although we have some popular models.but the real good palnt is designed for clients,based on the condition of gold mine site
Click here for more design details
5.How can I contact you ?
8.Contact information
Qingzhou Keda Mining Machine Co,.Ltd.
Tina Xu
E-mail:sales04(at)miningmachine.net
Skype:kedamachinery04
Tel/Fax:0086-536-2105419
Tel : 86 18363675506
